High Atability Pressure Transmitter Water Pipe Piezoresistive Pressure Sensor
Description High Performance Pressure Transmitter
YD37 316 series diffused silicon pressure transmitter. Our company introduces foreign technology and equipment to produce transmitters. The key raw materials, components and parts are all derived from imported diffused silicon and ceramic pressure sensors as sensitive components. The integrated module is adopted. Fine temperature drift, zero point, and nonlinear compensation can realize accurate measurement and transmission of pressure changes in liquid, gas, steam and other media.
The product is small in size, suitable for small space installation, direct installation in the process, good temperature characteristics, and high comprehensive accuracy. The whole machine has been rigorously assembled and tested. The product has the characteristics of design principles, varieties, and easy installation and use. Since the appearance of this model is fully integrated with the current domestic popularity, in order to adapt to the continuous improvement and development of domestic automation level, this series of products are not only compact in design, but also introduces intelligent functions with HART fieldbus protocol.

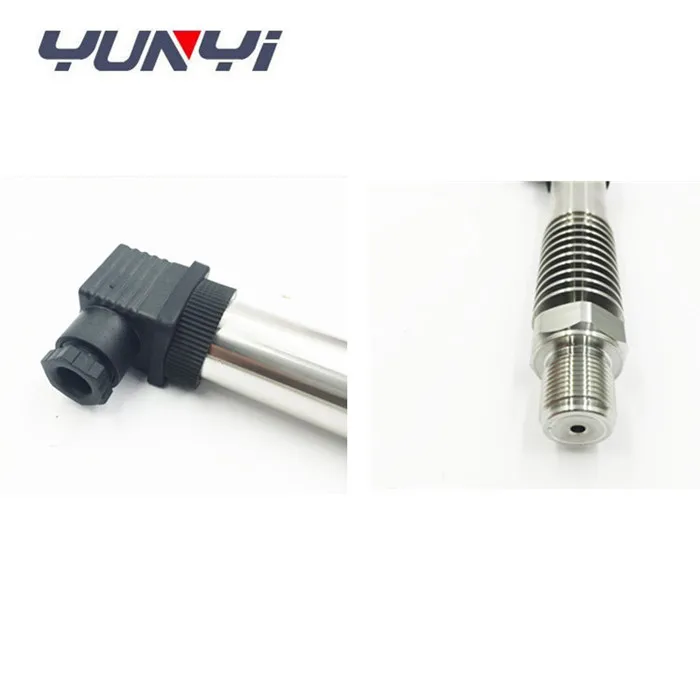

Detailed Images High Performance Pressure Transmitter
Specification High Performance Pressure Transmitter
Output signal:4-20mA, 0-20mA, 0-5V,0-10V and others
Pressure Range: 0-0.1bar to 0-1000bar
Pressure Interface: G1/4, G1/2 1/4NPT, 1/2NPT and others
Electric Interface,L plug interface, Circular plug interface, Wire output, With cable
Contact member: stainless steel
Case: stainless steel
Internal transfer liquid(Not suitable for measuring range)>25bar
Synthetic oil{Halocarbon oil counter to Manufacturing structure with oxygen}{ counter to food industry}
Allowable temperature
Measure Medium: -30-100°C
Environmental temperature: -20-80°C
Storage temperature: -40-100°C
Features High Performance Pressure Transmitter
- Small size easy installation
- Stainless steel case sturdy and durable
- Wide temperature range:-40~125℃
- Durable thin film sensor technology
- Pressure ranges from -1 bar to 60bar
- 0.5-4.5V ,1-5V ,0-5V ratiometric outputs
- 0-10V, 4-20 mA , others available
- Highly resistant to pressure spikes and vibration
Applications High Performance Pressure Transmitter
- Automobile, compressor and refrigeration Industry
- Engineering machinery
- pressure control and monitor
- Energy and water treatment system
- Armarium, agricultural machinery
- Hydraulic and pneumatic control system
- Pump, fitness equipment, household appliances
- Iron and steel industry, light industry
- Hydraulics and pneumatics
- Liquid level measurement
- Test equipment
