YUNYI Differential Manometer Pressure Meter 0-60Pa Differential Pressure Gauge

Brand Name : YUNYI

Model Number : YD-2000

Certification : CE

Place of Origin : China

MOQ : 1 Piece

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000-5000pcs

Delivery Time : 5-8 work days

Packaging Details : cardboard box

Contact Now

1 Medium: air and non-combustible, compatible gases (optional gas) 2 Housing: cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test 3 Accuracy: 2% FS (mm units, and the range with the corresponding pa) 4 Pressure range:. -20Hg To 15 psig (-0.677 bar to 1.034 bar) 5 Temperature range: 20 to 140 ° F (-6.67 to 60 ° C) 6 Hole size: 114mm 7 Mounting Orientation: Diaphragm in vertical 8 Connections: same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back 9 Weight: 500g / only 10 Standard accessories: two 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP)
Model Series
2000 Series (e.g., 2000-60PA, 2000-1KPA, 2000-30KPA)
Measurement Range
-15 Pa to 750 Pa (81 selectable ranges, including ±60 Pa, ±125 Pa, ±250 Pa, etc.)
Pressure Limit
-68 kPa to 103 kPa
Max Overpressure
172 kPa (standard); 551.6 kPa (high-pressure option)
Accuracy
±2% F.S.O.
Dimensions
120.65 mm × 55.56 mm
Weight
460 g
Material
304 stainless steel housing (optional); corrosion-resistant components
Installation
Flush-mounted panel with concealed components; pre-drilled holes for mounting
Port Connections
Dual 1/8" NPT ports (high/low pressure); rubber tube adapters included
Operating Medium
Air or non-corrosive gases
Applications
Pharmaceutical cleanrooms, HVAC systems, filter monitoring, industrial automation
Special Features
Magnetic movement mechanism (no friction), overload protection, shock resistance
Standard Accessories
2×1/8" NPT plugs, 3×flush-mounting brackets with bolts
Details Images

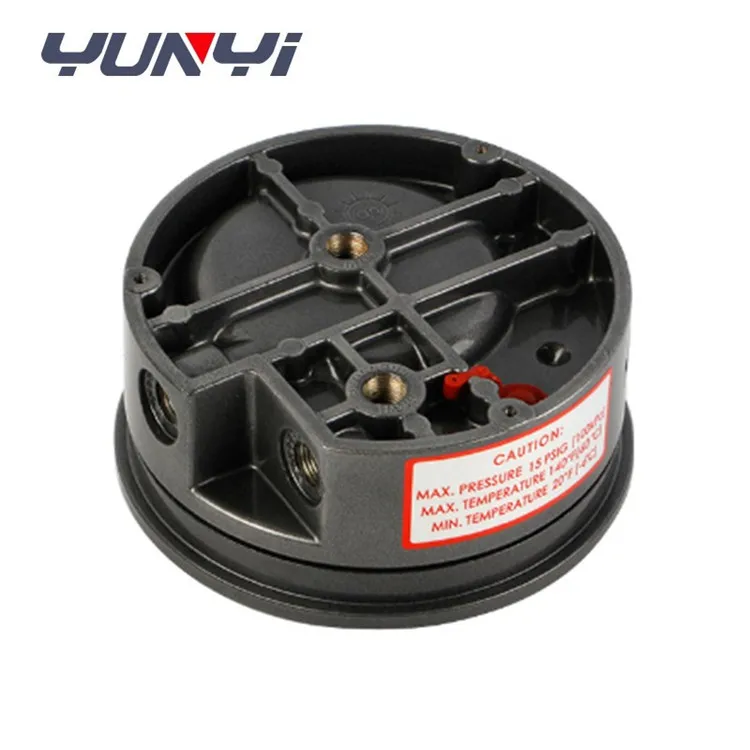

YUNYI Differential Manometer Pressure Meter 0-60Pa Differential Pressure Gauge

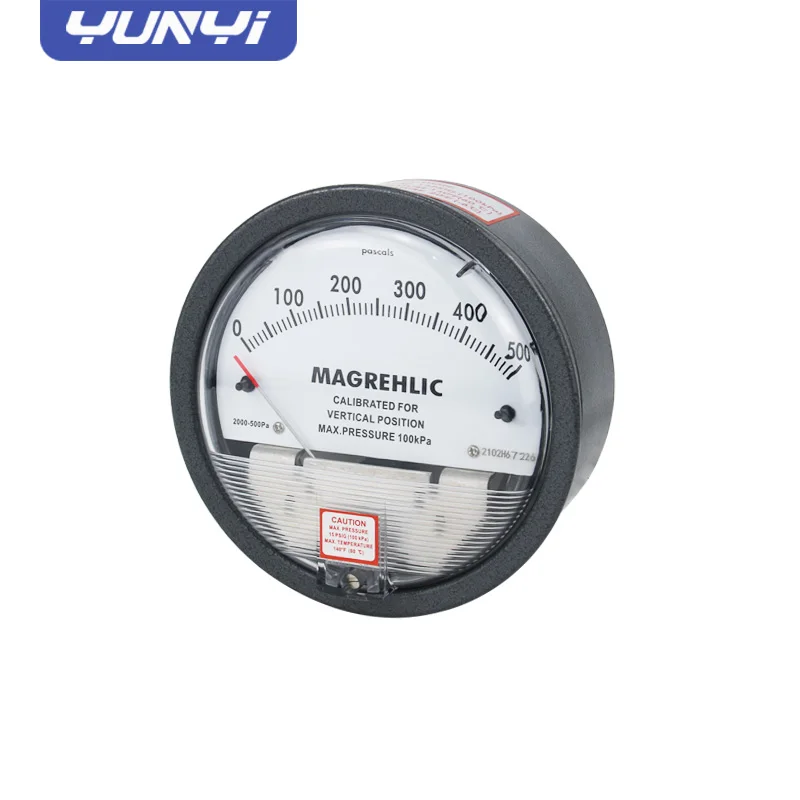

YUNYI Differential Manometer Pressure Meter 0-60Pa Differential Pressure Gauge

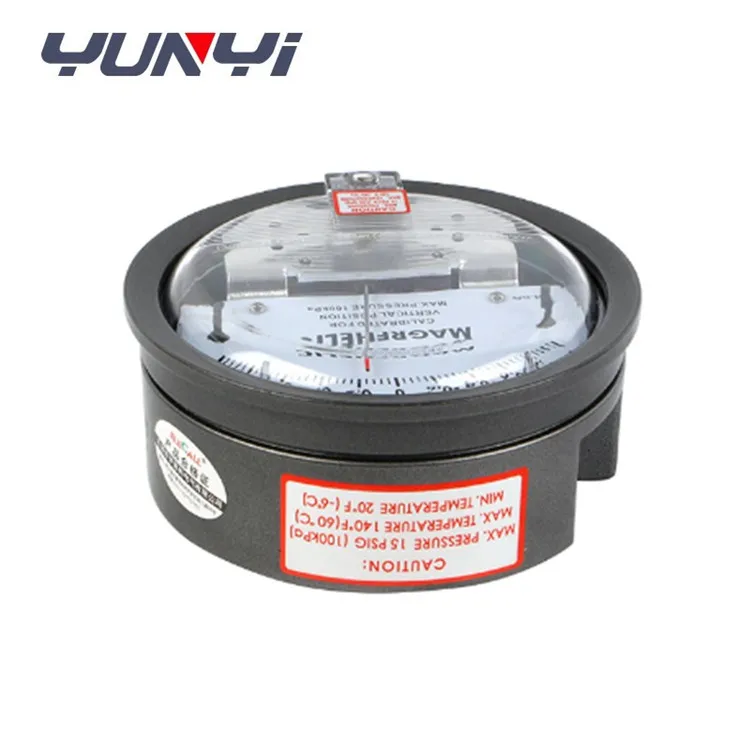

YUNYI Differential Manometer Pressure Meter 0-60Pa Differential Pressure Gauge
YUNYI Differential Manometer Pressure Meter 0-60Pa Differential Pressure Gauge
Applicaiton
For medical and health, microelectronics, aerospace, environmental engineering, bio-engineering, pharmaceuticals, building intelligence, HVAC, food and beverage, precision electronic processingFor medical and health, microelectronics, aerospace, environmental engineering, bio-engineering, pharmaceuticals, building intelligence, HVAC, food and beverage, precision electronic processing.
